Data center air filtration requires a coordinated multi-stage approach to mitigate particulate contamination, corrosive gaseous pollutants (such as H₂S and SO₂), and humidity spikes, thereby protecting high-density server hardware from premature copper creep corrosion, silver whiskering, and thermal cooling failures.

This article details the environmental classifications and filtration solutions designed to protect critical IT equipment in data centers. It is written for data center facility managers, infrastructure architects, hardware reliability engineers, and industrial HVAC designers seeking to implement ASHRAE and ISA compliant air filtration strategies.

 Understanding the Three Core Contaminants in Data Centers

Modern data centers host high-density server racks that operate continuously under high thermal loads. As server components become increasingly miniaturized, they become highly sensitive to environmental airborne contaminants. Protecting this hardware requires mitigating three main threats:

1. Particulate Contamination (Dust and Fiber)

Airborne particles (classified as PM2.5 and PM10) are drawn into servers by high-speed cooling fans. Coarse particles can settle on heatsinks, blocking micro-channels and causing servers to overheat and throttle performance. More critically, fine conductive or hygroscopic dust can settle directly on PCB circuits. Under high humidity, this dust absorbs moisture, creating electrical short-circuits and component failures.

2. Corrosive Gaseous Contamination

Gaseous pollutants like hydrogen sulfide (H₂S), sulfur dioxide (SO₂), nitrogen dioxide (NO₂), and chlorine (Cl₂) are highly corrosive to electronic circuits. When these gases combine with moisture, they react with exposed metal on circuit boards—particularly copper and silver. This chemical reaction leads to: * Copper Creep Corrosion: The growth of conductive copper sulfide crystals across PCB surface insulation, bridging electrical paths and causing permanent short circuits. * Silver Whiskering: The formation of microscopic silver sulfide needles that grow out of surface-mount components, leading to localized electrical arcing and failure.

3. Relative Humidity (RH) Fluctuations

Relative humidity acts as an accelerator for both particulate and gaseous damage. If humidity is too high (>60% RH), gaseous corrosion rates double, and hygroscopic dust becomes conductive. If humidity is too low (<20% RH), the risk of electrostatic discharge (ESD) increases, threatening sensitive microchips during hot-swapping or maintenance.

 Regulatory Standards: ASHRAE and ISA 71.04

Data center design must comply with two industry-standard environmental frameworks:

ASHRAE Thermal Guidelines (Classes A1 to A4): ASHRAE specifies that data centers must maintain stable particulate control, recommending a minimum filtration level of MERV 8 (coarse pre-filtration) and MERV 11 or 13 (medium-efficiency filtration) for standard incoming fresh air.

ISA 71.04 Standard for Gaseous Severity: This standard classifies the corrosiveness of an environment based on the corrosion rate of copper and silver test coupons over a 30-day exposure period.

– Class G1 (Mild): Copper corrosion rate <300 Å/month. Safe for modern electronics.

– Class G2 (Moderate): Copper corrosion rate 300 to 1000 Å/month. Corrosion is a risk; chemical filtration is required.

– Class G3 (Harsh): Copper corrosion rate 1000 to 2000 Å/month. High risk of hardware failure. Active chemical filtration is mandatory.

 Data Comparison Table: Data Center Tiers and Recommended Filtration

To implement the correct filtration strategy, systems must match the data center’s operational tier and regional contamination risk profile.

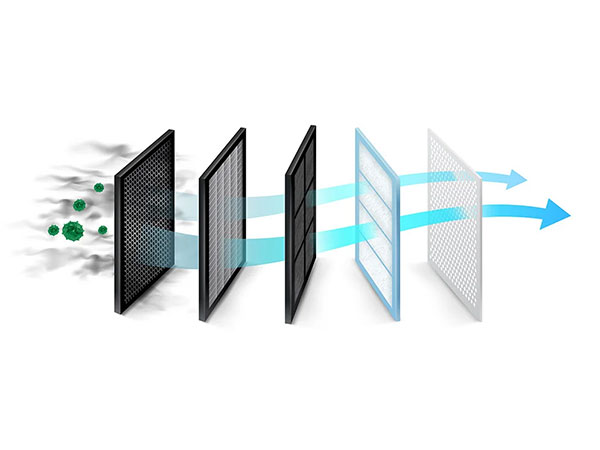

 The Three-Stage Industrial Filtration Solution

A robust data center HVAC system relies on a multi-stage filtration cascade to progressively remove larger particles, fine dust, and gaseous pollutants:

Stage 1: G4 Pre-Filtration (Coarse Control): G4 panel or pleated filters are installed at the fresh air intake to capture large particles, insects, leaves, and heavy dust. This protects downstream medium and high-efficiency filters from premature clogging.

Stage 2: F8/F9 Bag/Pocket Filtration (Fine Dust Control): F8/F9 high-efficiency synthetic pocket filters capture sub-micron dust particles (PM2.5 and PM1.0) that can settle on high-speed server cooling fans and circuit board assemblies.

Stage 3: Activated Carbon / Gas-Phase Adsorption: Chemical carbon filter modules are utilized to absorb corrosive gases (H₂S, SO₂). By utilizing physical adsorption and chemical reactions (chemisorption), they neutralize corrosive compounds before they can enter the server halls.

 When to Add HEPA Filtration

In Tier 3 and 4 facilities, or data centers located near petrochemical plants, coastal ports (with high salt spray), and high-pollution urban areas, adding an H13 HEPA filter downstream of the chemical carbon stage is recommended. A server room HEPA filter eliminates 99.97% of sub-micron particles, ensuring complete protection for sensitive optical transceivers and high-density liquid-cooled server plates.

 KLC Data Center Filtration Products

KLC provides comprehensive air filtration systems engineered specifically for data center environments. The KLC Activated Carbon Filter + Pocket Filter combination represents a highly effective, space-saving solution. KLC’s synthetic pocket filters utilize premium multi-pocket designs to achieve high dust-holding capacity with minimal pressure drop, keeping fan operating costs low. Combined with KLC’s high-adsorption molecular activated carbon modules, this system ensures server rooms maintain a clean, non-corrosive atmosphere conforming to ISA 71.04 Class G1 and ASHRAE guidelines.

 FAQ: Data Center Air Filtration

What is the impact of sulfur dioxide (SO₂) on modern lead-free server motherboards?

Since the introduction of RoHS (Restriction of Hazardous Substances) directives, lead-free solders (typically containing tin, silver, and copper) have replaced traditional lead-tin alloys on PCB boards. Lead-free circuits are far more susceptible to gaseous sulfur dioxide (SO₂) corrosion. When SO₂ reacts with copper or silver under humid conditions, it forms copper sulfide and silver sulfide, which grow into conductive “whiskers” that cause micro-short circuits, leading to random server crashes and hard drive failures.

How does ASHRAE define particulate limits for data center air quality?

ASHRAE recommends that data centers maintain a particulate cleanliness level equivalent to ISO Class 8 (according to ISO 14644-1). This requires the air inside the server hall to contain fewer than 3,520,000 particles per cubic meter of size 0.5 microns or larger. Achieving and maintaining ISO Class 8 cleanliness requires continuous recirculated air filtration utilizing F8 or F9 medium-efficiency pocket filters, supplemented with pre-filtration on fresh air intakes.

What is ISA 71.04 G1 class, and why is it the goal for server rooms?

ISA 71.04 Class G1 represents a “Mild” environment where the gaseous corrosion rate is low enough that corrosion will not cause electronic hardware failure. Specifically, the copper corrosion rate must be less than 300 Angstroms per month, and the silver corrosion rate must be less than 200 Angstroms per month. This is the global benchmark for server room design because it ensures that servers can operate for their intended 3 to 5-year lifespan without experiencing chemical degradation.

Can activated carbon filters remove both moisture and corrosive gases?

No. Activated carbon filters are designed to capture volatile organic compounds (VOCs) and corrosive gases through physical adsorption and chemisorption. They are not desiccant systems and cannot absorb moisture or control relative humidity. In fact, high humidity can saturate the carbon pores, reducing its capacity to adsorb gaseous pollutants. Therefore, relative humidity must be managed separately using dedicated HVAC dehumidifiers or humidifiers.

When should a data center upgrade from an F8 bag filter to a HEPA filter?

A data center should upgrade to HEPA filtration (H13/H14) if it is located in a high-pollution urban area, near heavy chemical industries, or if it operates critical Tier 4 or military-grade hardware. Additionally, edge data centers located in highly dusty industrial sites (such as mining or cement facilities) require HEPA filters to protect localized, unattended telecom and server enclosures from fine conductive dust.

How often should data center pre-filters and medium filters be replaced?

To maintain optimal HVAC energy efficiency, G4 pre-filters should be replaced every 3 to 6 months, as they accumulate the largest volume of coarse debris. F8 or F9 medium-efficiency pocket filters should be replaced every 12 to 18 months, or when they reach their recommended terminal pressure drop (typically 250 Pa). Delaying replacement increases the pressure drop, forcing fans to run faster and increasing the data center’s PUE (Power Usage Effectiveness).

What is silver whiskering, and how does air filtration prevent it?

Silver whiskering is a phenomenon where microscopic, highly conductive needle-like structures of silver sulfide grow out of surface-mount components (like resistors) containing silver. These whiskers can bridge electrical contacts, causing short circuits. Air filtration prevents this by utilizing activated carbon filters to remove sulfur-bearing gases (such as H₂S) from the air, eliminating the chemical reactant required for silver sulfide to form.

How does pressure drop in filters affect a data center’s Power Usage Effectiveness (PUE)?

Air filters impose air resistance (pressure drop) on the HVAC system. As filters accumulate dust, this resistance increases. To maintain the constant airflow required to cool servers, HVAC blowers must spin faster, consuming more electricity. Since cooling energy represents a significant percentage of a data center’s overhead, selecting filters with low initial resistance and high dust capacity—such as KLC’s advanced synthetic pocket filters—directly reduces energy consumption and improves the overall PUE.

 Conclusion

Protecting modern high-density servers requires a holistic air filtration strategy that addresses particles, corrosive gases, and relative humidity. Utilizing a coordinated three-stage filtration system with premium pre-filters, high-efficiency bag filters, and gas-phase activated carbon is essential to ensure hardware reliability and pass environmental audits. For expert guidance on data center filtration design and custom product sourcing, contact KLC International at https://www.klcintl.com/.
